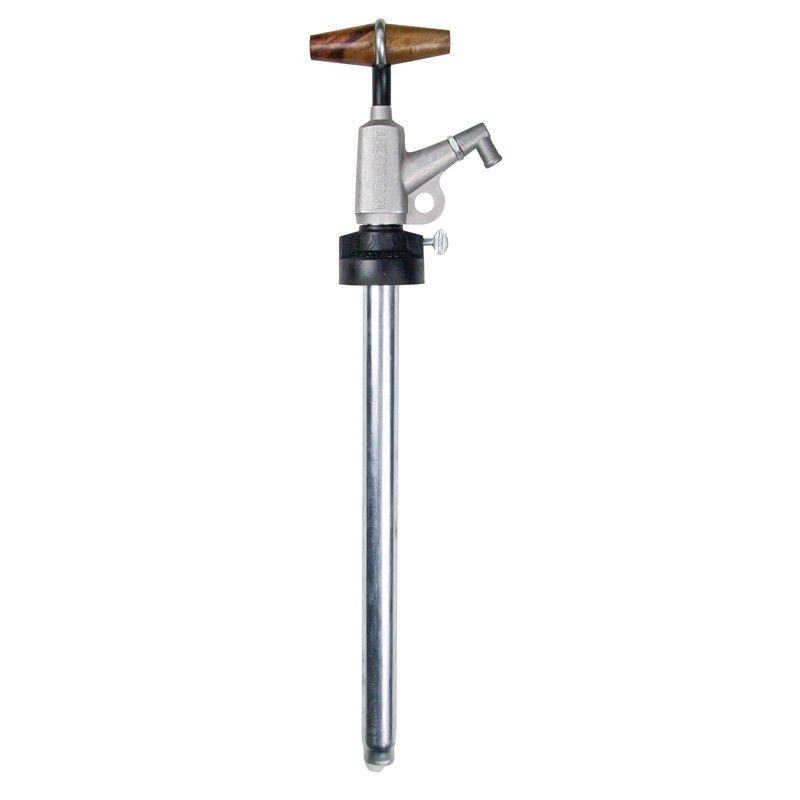

20L MULTI PURPOSE HAND OPERATED OIL PUMP - C7N-01

20L MULTI PURPOSE HAND OPERATED OIL PUMP - C7N-01

Product Overview

The C7N-01 multi-purpose hand operated oil pump is suitable for use with a wide range of mineral oils.

It is ideal for pumping gear oils and transmission fluids up to SAE 140.

The C7N-01 is supplied with three bung adapters to suit various containers from 15-25L.

Features & Benefits

• Suitable for oils up to SAE140 viscosity
• Delivers up to 100ml on the down stroke- For easier dispensing
• Built-in nozzle holder- Prevents spillage
• Comfortable wood handle
• Durable construction- Built to last
• Supplied with 3 bung adaptors- Fits a wide range of different types of containers from 15-25L
• Fully serviceable- Longer service life
• Optional CF strainer available for ATF & hydraulic oils- For use with AG88S 1.8m hose and nozzle set

Technical Specifications

• Wetted components - Aluminium, steel, viton, delrin and zinc
• Compatible fluids - kerosene, two stroke mix, lubricating oils up to SAE140
• Pump output: 100ml/stroke
• Compatible with most drum sizes from 15-25L

Package Includes

• C7 pump
• 3x bung adaptors to suit 15-25L containers

Notes

• An optional strainer for Auto transmission fluids is available on request (part number CF)
• Replacmeent 1.8m hose, nozzle & clamp set is available (part number: AG88S)
• The C7 pump can be purchased with a strainer included (part number: C7-51).
• Underground mine zinc model available (C7Z-01)
