20L MULTI PURPOSE HAND OPERATED OIL PUMP WITH DELIVERY HOSE - C7

20L MULTI PURPOSE HAND OPERATED OIL PUMP WITH DELIVERY HOSE - C7-01

Product Overview

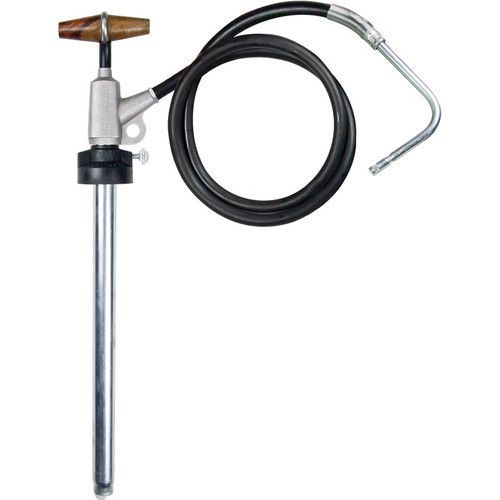

The 20L Multi Purpose C7 hand operated oil pump is suitable for use with a wide range of mineral oils delivering up to 100ml per stroke.

The C7 is supplied with three bung adapters to suit various containers from 15-25L.

The C7 also features a built in nozzle holder, 1.8m delivery hose, delivery spout and a manual non-drip nozzle complete with manual shut off.

Features & Benefits

• Supplied with 1.8m delivery hose- For easy gearbox and diff filling
• Suitable for oils up to SAE140 viscosity
• Delivers up to 100ml on the down stroke- For easier dispensing
• Delivery spout, built-in nozzle holder and manual non-drip nozzle- No spillage
• Comfortable wood handle
• Durable construction- Built to last
• Supplied with 3 bung adaptors- Fits a wide range of different types of containers from 15-25L
• Fully serviceable- Longer service life
• Optional CF strainer available for ATF & hydraulic oils

Technical Specifications

• Wetted components - Aluminium, steel, viton, delrin and zinc
• Compatible fluids - kerosene, two stroke mix, lubricating oils up to SAE140
• Pump output: 100ml/stroke
• 1.8m rubber/nitrile delivery hose
• Compatible with most drum sizes from 15-25L

Package Includes

• C7 pump
• 1.8m delivery hose with manual shut-off nozzle
• 3x bung adaptors to suit 15-25L containers

Notes

• An optional strainer for Auto transmission fluids is available on request (part number CF)
• Replacmeent 1.8m hose, nozzle & clamp set is available (part number: AG88S)
• The C7 pump can be purchased with a strainer included (part number: C7-51).
• Underground mine zinc model available (C7Z-01)
