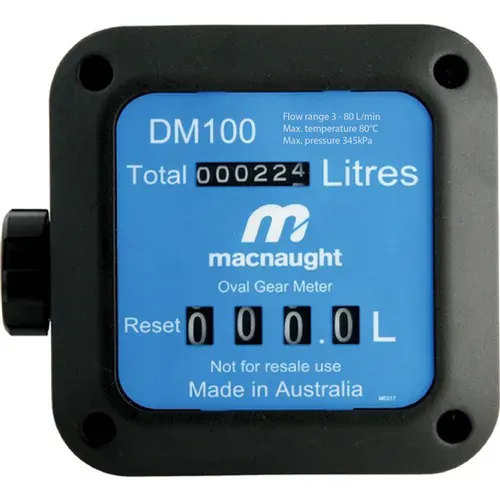

Macnaught DM100 Mechanical Flow Meter

Oval gear mechanical fuel meter. Flow rate 3 - 80 L/min. Accurate reading to +/-1 %.

Operating pressure up to 345 kPa (50 psi).

Resettable totaliser 999.9 litres.

Suitable for diesel, kerosene, petrol and oils.

Best choice for gravity feed tanks and unit has 1" BSP(F) ports.

Technical Specifications

• Flow range between 3 - 80L/min
• Operating pressure up to 345 kPa (50 psi)
• Accuracy around +/- 1.0% of reading
• Fitted with 1" BSP(F) inlet/outlet
• Mechanical display with push-button reset batch total
