Macnaught FGK1-01 Flexi Greasing Kit suits 450g Cartridges

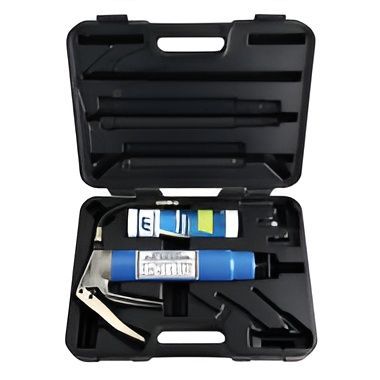

Flexi-Greasing Kit. Sturdy plastic blow-molded case complete with K29, KIN injector needle, KZDXL coupler, KDR coupler, KD62 extension, an extra KY SUPERGRIP™ coupler and a spare 450 g cartridge of

grease.

Grease Gun Specification

Pistol grip FLEXIGUN® for 450 g cartridges, bulk fill or J2 loading. Typical output 34,450 – 68,900kPa (5,000 – 10,000psi)

A classic Macnaught grease gun, the FLEXIGUN® incorporates a unique variable stroke operation, able to reach increased greasing pressures from short strokes and increased greasing volumes from full strokes.

Features

• pistol grip design for one handed operation
• 230 mm (9”) flexible extension and KY SUPERGRIP™ coupler
• refillable by cartridge, bulk or J2 grease pump
• also available in a complete greasing kit (FGK1, K29-12, K29C-12)
• fully serviceable
• 10 year warranty and parts guarantee

Specifications

• grease viscosity: up to NLGI No.2
• wetted components: aluminium, steel and nitrile rubber (and zinc for model K29-Z)
• maximum pressure: up to 52 000 kPa (7 500 psi, 520 bar),
• output: 0.68 g per shot

Accessories

• KZD Needlenose Coupler
• KZHY Hyperdermic Needlepoint Coupler
• KFR Rigid/Flexible Extension
• KDF13 Flexible Extension

Product Overview

The K29 FLEXIGUN® Greasing Kit is the complete package, featuring a classic Macnaught K29 Grease Gun that incorporates a unique variable stroke piston and valve arrangement for true one handed operation. The push in handle is easy to use and requires much less effort to operate. Increased pressure can be produced by short strokes (low volume) or high volume using a long stroke (low pressure). Heavy duty pistol grip construction with comfortable ergonomics to suit 450g grease cartridges, bulk filling or Macnaught J3 grease transfer pump loading.The K29 is fully repairable with a strong die cast head and heavy gauge steel barrel for extra long service life.

Features & Benefits

• Can be filled from a bulk supply of grease- Economical & contamination free greasing
• 9mm diameter hand operated Filler / Bleeder Outlet- For use with Macnaught J3 grease pump or any other 9mm bulk fill grease pump
• Reversible follower- For cartridge or bulk applications
• Lock the plunge rod into the follower- For easier bleeding
• Machined barrel thread- Makes it easier to screw the barrel to the head
• Stepped Barrel- For easy grip
• Heavy-duty design and construction- Reduces wear & facilitates effortless pressure building
• Short stroke facility- Ability to boost greasing pressure using shorter hand strokes to easily clear blocked grease nipples
• Screw fasteners- No rivets for easy servicing
• Pistol grip and unique piston and valve arrangement- For easy one handed operation
• Flexible high pressure extension hose- Easier to grease hard to reach nipples
• Fully repairable- Provides a much longer service life
• Supergrip KY coupler- Positive no leak connection ensures grease gets to the bearing.

Technical Specifications

• Delivery pressure up to 68,900kPa (10,000psi)
• KF17 430mm (17") high pressure flexible extension
• KY SUPERGRIP™ 3 jaw high pressure coupler
• Up to 0.68g per shot
• Heavy-duty 1.6mm thick barrel
• Robust zinc pull handle
• Wetted parts - Aluminium, steel, nitrile rubber, cork and nylon
• Maximum viscosity - Up to NLGI 2
• Compatible with 450g cartridges for contamination free greasing

Package Includes

• 1 x K29 FLEXIGUN® Grease Gun
• 2 x KY SUPERGRIP™ coupler
• 1 x KF17 430mm (17") high pressure flexible extension
• 1 x KIN injector needle
• 1 x KZDXL straight point coupler
• 1 x KDR right angle coupler (incl SUPERGRIP™ coupler)
• 1 x 450g FLEXIBLUE® EP2 grease cartridge
• 1 x Hard plastic carry case
