RAPIDFLO™ rotary action pump for 205L drums. Typical output 100L/min. Suitable for diesel, petrol and light viscosity oils up to SAE 30 viscosity as well as Av gas* and Jet A1*
Product Description

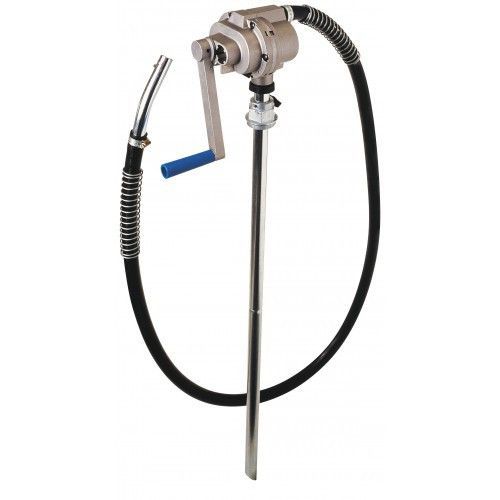

Macnaught GT-01 GT RAPIDFLO™ Hand Pump 100L/m
Product Overview
The GT RAPIDFLO™ is a rotary action pump suitable for transferring diesel, ULP, aviation fuels, kerosene & light oils (up to SAE30).
The RAPIDFLO™ is capable of transfer rates of 800ml per revolution (up to 100L/min depending on viscosity) from 60 - 205L drums and tanks. The pump is easy to prime and is capable of fluid delivery in both directions.
The RAPIDFLO™ is also suitable for users who either cannot use an electric fuel pump for safety reasons or do not have access to power in remote locations.
It can be used to transfer AV-Gas* and Jet A1* although users of aviation fuels must check material compatibility with the fuel product they are using.
Features & Benefits
Rotary action pump incorporating a gearbox for high output and easy operation- Ideal for high volume fuel transfer
Delivers 800ml per revolution- Able to achieve flow rates up to 100L/min (in both directions)
2.4m anti-static rubber hose- Suitable for pumping petrol, diesel and kerosene
Built-in 193 micron strainer- Protects your fleet from fuel contamination
Built-in nozzle holder- Allows nozzle to be fixed in non-siphoning position
Lockable handle- For added security when pump is unattended
Three piece suction tube- Allows length of suction tube to be adjusted to accommodate different height drums
Built-in 2" sliding bung adaptor- Suits different height drums from 60L - 205L
Robust aluminium housing screwed together- For ease of service and maintenance
Anti-kink springs- Prevents hose from restricting fluid delivery
Fully repairable- Provides longer service life
Optional (HA-01) 10 micron fuel filter available- For extra protection in fuel deliveries
Optional (HNU) Fuel Nozzle- Suitable for transferring ULP and diesel
Technical Specifications
Suitable for 60L - 205L drums
Delivers 800ml per revolution (Up to 100L/min)
2.4m anti-static rubber delivery hose
3/4" BSP threaded pump outlet
Suitable for use with diesel, ULP, kerosene and oils (up to SAE30)
Wetted components: aluminium, steel, zinc, nitrile rubber and viton
