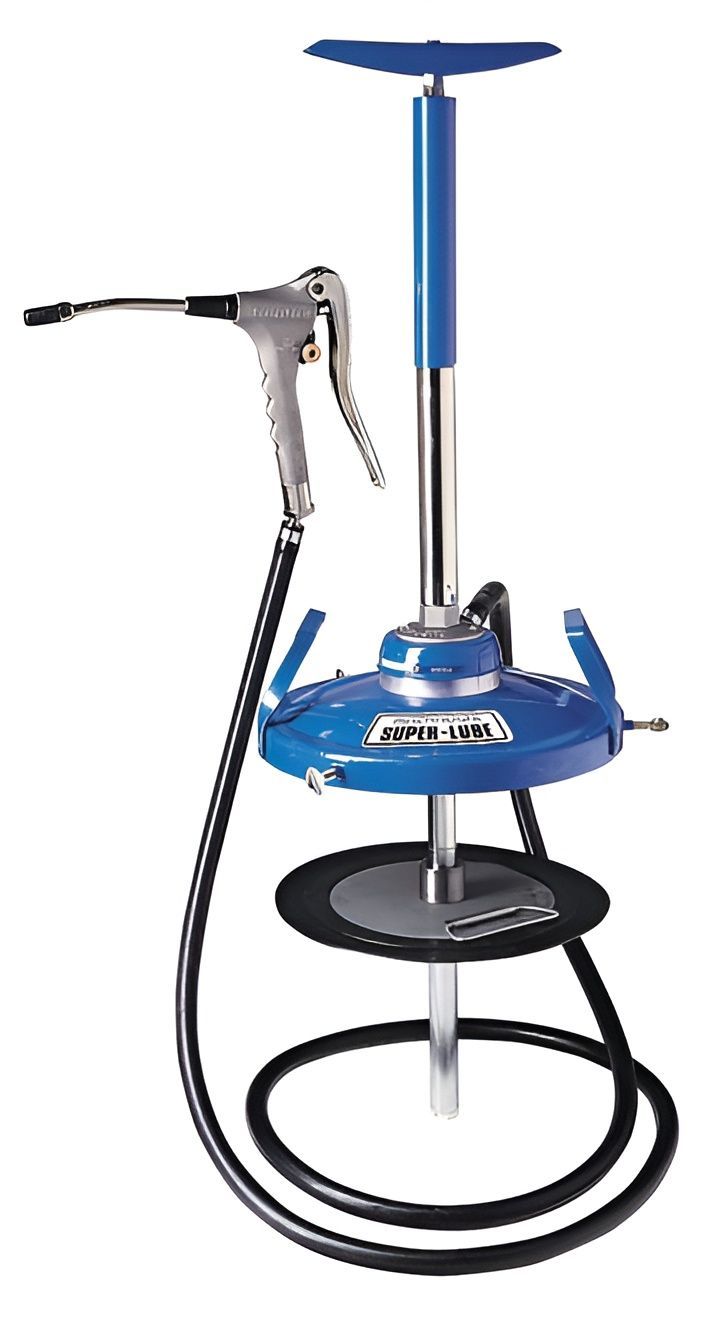

The K4 SUPERLUBE™ Portable High Pressure Manual Greasing System provides high-volume/high-pressure greasing in a compact and portable package.
The SUPERLUBE™ consists of two main components, a hand operated spring-loaded T handle pump, which dispenses grease from the container to the hose and gun and a patented high pressure/high volume KR Pressurite™ gun.
When the gun is set on the high volume position the gun will deliver up to 5,000 psi and when set on the high pressure setting the gun will deliver a lower volume of grease, but at higher pressures ( up to 10,000 psi). The K4 is an economical alternative to the more expensive air-operated greasing systems.
Features & Benefits
Sliding bung adapter- allows several different height grease pails from 12.5-20kg to be covered by one single model
Can be used as a backup for power operated systems- In case of a systems malfunction or breakdown eg. power failure.
Manual greasing system- Suitable for users who need a high-pressure greasing capability but don't have or can't use air-powered equipment.
Light weight and portable- Holds more grease than a conventional handgun so it can be easily transported to the application.
Up to 45 times the grease capacity of a cartridge- Less down time changing grease cartridges
Self air bleeding system when first used- No air purging necessary when changing containers
Manually operated & light weight with carry handle- Portable, go anywhere system
2 way KR Pressurite Gun- Two grease guns in one
High pressure / High volume switch- Can deliver up to 5,000psi on the high volume setting or 10,000psi on the high pressure setting
Pressurite gun offers high volume greasing up to 5,000psi- High volume greasing offers superior performance compared to hand held manual grease guns
Pressurite gun offers high pressure greasing up to 10,000psi- Air operated performance, clears blocked or damaged grease nipples
Fully sealed greasing system- Clean grease to the bearing every time
Handles most greases up to NLGI No.2 viscosity- Versatility of use
Easy push-down hand operated spring loaded T handle pump- Provides 60 shots at the gun, no pressure developed in container, allows one-handed operation
Rubber edged follower plate- Wipes container clean to use all of the grease in the container, prevents air pockets and contamination
KY Supergrip Coupler- Positive, no leak connection. Ensures grease gets to the bearing
Inbuilt grease strainer- Ensures clean grease to the bearing
Fully repairable- Provides a longer service life
3m grease delivery hose- Easy to reach difficult applications, transfer only / Maximum 280psi
360° swivel to gun- Prevents hose kinking / twisting. Easy one handed operation
Range of push-on / quick release greasing accessories available- Increased versatility / flexibility for different applications
Technical Specifications
High volume delivery pressure up to 34,450kPa (5,000psi)
High pressure delivery pressure up to 68,900kPa (10,000psi)
