POWERPISTOL™ single shot air operated grease gun for 450g cartridges, bulk fill or J2 loading. Generates up to 41 400 kPa (6,000 psi). Low air consumption of 0.028 m3/min (1 cfm).
Product Description
One Handed Air Operated Grease Gun
Product Overview

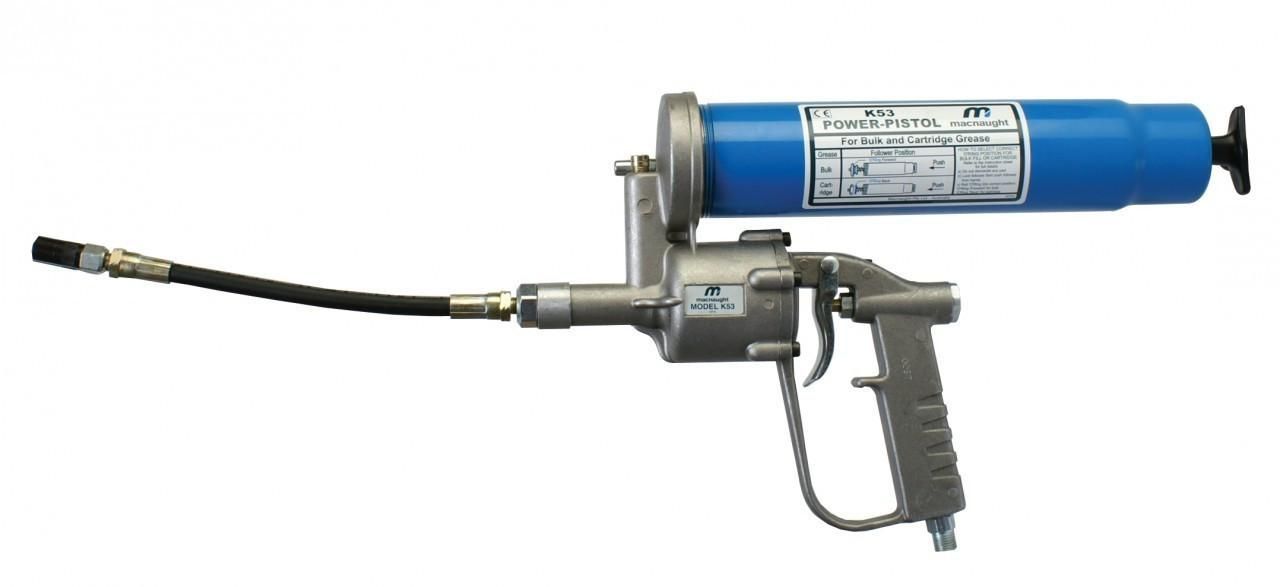

The K53 POWERPISTOL™ is an air-powered single shot grease gun that combines portability with effortless one handed operation. Low air consumption makes the K53 POWERPISTOL™ ideal for use with truck and bus brake system air supply. Air powered requires much less effort to operate. Heavy duty pistol grip construction with comfortable ergonomics to suit 450g grease cartridges, bulk filling or Macnaught J3 grease transfer pump loading. The K53 POWERPISTOL™ is fully repairable with a strong die cast head and heavy gauge steel barrel for extra long service life.
Features & Benefits
Pistol grip and air-powered- For easy one handed operation
Low air consumption -
Use with truck & bus brake system air supply
Single shot 50:1 piston assembly- Produces up to 6,000psi of grease pressure
Can be filled from a bulk supply of grease- Economical & contamination free greasing
9mm diameter hand operated Filler / Bleeder Outlet- For use with Macnaught J3 grease pump or any other 9mm bulk fill grease pump
Reversible follower- For cartridge or bulk applications
Lock the plunge rod into the follower- For easier bleeding
Machined barrel thread- Makes it easier to screw the barrel to the head
Stepped Barrel- For easy grip
Heavy-duty design and construction- Reduces wear & facilitates effortless pressure building
Screw fasteners- No rivets for easy servicing
Flexible high pressure extension hose- Easier to grease hard to reach nipples
Fully repairable- Provides a much longer service life
KY SUPERGRIP™ 3 jaw high pressure coupler- Positive no leak connection ensures grease gets to the bearing.
Technical Specifications
Delivery pressure up to 41,400kPa (6,000psi)
Single shot only, one shot per trigger pull
Up to 0.7g per shot
Minimum air pressure: 275 kPa (40psi)
Maximum air pressure: 830kPa (120psi)
Minimum compressor size: 0.026 M3/MIN (1 cfm)
air inlet: 1/4" BSP
Flexible 230mm (9") high pressure extension hose
KY SUPERGRIP™ 3 jaw high pressure coupler
Heavy-duty 1.6mm thick barrel
Robust zinc pull handle
Wetted parts - Aluminium, steel, nitrile rubber, cork and nylon
Maximum viscosity - Up to NLGI 2
Compatible with 450g cartridges for contamination free greasing
