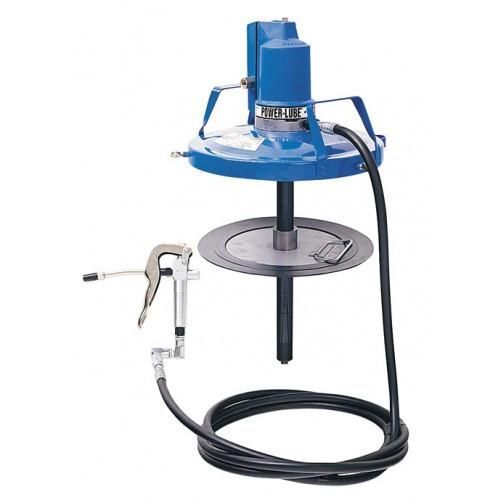

50:1 air operated POWERLUBE® for 20 kg drums. B2 ‘Booster Gun’ provides boost pressure up to 68 900 kPa (10,000 psi). Complete with 4 m hose and follower. Suitable for underground coal mine applications.
The P3 POWERLUBE® is the ultimate in high pressure, air-powered greasing. With models available to suit containers from 12.5kg (28 lbs.) to 22 kg (48 lbs.), it is fitted with a 50:1 ratio air motor which can run off most small compressors to provide fast, continuous greasing. The P3 POWERLUBE is also suitable for underground coal mine applications.
Product Description
50:1 air operated POWERLUBE® for 20 kg drums.
The P3 POWERLUBE® is the ultimate in high pressure, air-powered greasing.
With models available to suit containers from 12.5kg (28 lbs.) to 22 kg (48 lbs.), it is fitted with a 50:1 ratio air motor which can run off most small compressors to provide fast, continuous greasing.
The P3 POWERLUBE is also suitable for underground coal mine applications.
B2 ‘Booster Gun’ provides boost pressure up to 68 900 kPa (10,000 psi).
Complete with 4 m hose and follower.
Features
quiet, non-corroding air motor
low air consumption
no air line lubricator required
rubber edged follower plate
4m (13 ft.) x 6 mm (¼”) ID delivery hose
B2 booster gun with 360º ZSB swivel
fully serviceable
10 year warranty and parts guarantee
Specifications
grease viscosity:
up to NLGI No.2 wetted components:
zinc and hard chrome plated carbon steel, brass, and nitrile and polyurethane rubber output:
approx. 460 g/min (16 oz/min) max. air pressure:
1 030 kPa (150 psi, 10.3 bar) min. air pressure:
400 kPa (60 psi, 4 bar) min. compressor size:
0.08 m³/min (3 cfm) air inlet/fluid outlet:
¼” NPT (F) pump ratio:
50:1 (grease pressure is 50 times air) B2 gun pressure:
up to 69 000 kPa (10 0000 psi, 690 bar) (boost pressure)
