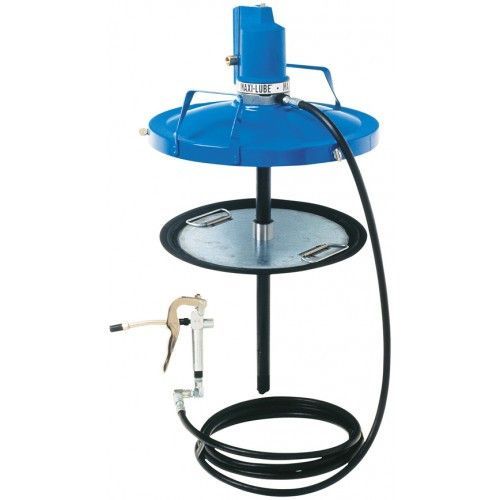

P6 MAXILUBE® 50:1 air operated MAXILUBE® for 50 to 55 kg drums.
Product Description
P6 MAXILUBE® 50:1 air operated MAXILUBE® for 50 to 55 kg drums. B2 'Booster Gun' provides boost pressure up to 68 900 kPa (10,000 psi).
Complete with 4 m hose. Suitable for underground coal mine applications
The P6 MAXILUBE® offers the same features & benefits as the P3 POWERLUBE®, but has models available to suit grease containers from 50 kg (110lbs) to 55 kg (120lbs).
The P6 MAXILUBE is also suitable for underground coal mine applications. Features quiet, non-corroding air motor low air consumption no air line lubricator required rubber edged follower plate 4m (13 ft.) x 6 mm (¼”) ID delivery hose B2 booster gun with 360º ZSB swivel fully serviceable
10 year warranty and parts guarantee
Specifications grease viscosity:
up to NLGI No.2
wetted components:
zinc and hard chrome plated carbon steel, brass, and nitrile and polyurethane rubber
output:
approx. 460 g/min (16 oz/min)
max. air pressure:
1 030 kPa (150 psi, 10.3 bar)
min. air pressure:
400 kPa (60 psi, 4 bar)
min. compressor size:
0.08 m³/min (3 cfm)
air inlet/fluid outlet:
¼” NPT (F)
pump ratio:
50:1 (grease pressure is 50 times air pressure)
B2 gun pressure:
up to 69 000 kPa (10 000 psi, 690 bar)
