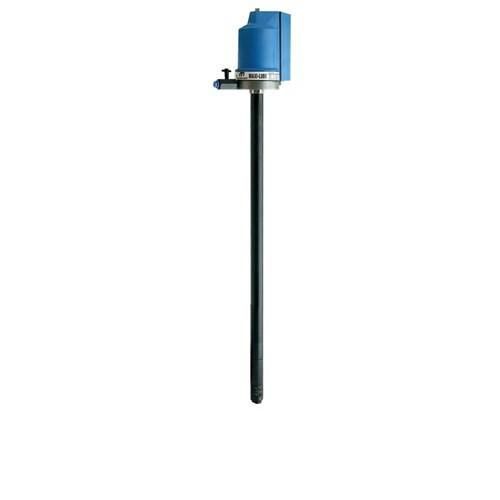

50:1 air operated MAXILUBE® for 50 to 55 kg drums. B2 'Booster Gun' provides boost pressure up to 68 900 kPa (10,000 psi). Complete with 4 m hose. Suitable for underground coal mine applications
The P6 MAXILUBE® offers the same features & benefits as the P3 POWERLUBE®, but has models available to suit grease containers from 50 kg (110lbs) to 55 kg (120lbs). The P6 MAXILUBE is also suitable for underground coal mine applications.
Features
quiet, non-corroding air motor
low air consumption
no air line lubricator required
rubber edged follower plate
4m (13 ft.) x 6 mm (¼”) ID delivery hose
B2 booster gun with 360º ZSB swivel
fully serviceable
10 year warranty and parts guarantee
Product Description
NOTE: Replacement Pump Unit Only
50:1 air operated MAXILUBE® for 50 to 55 kg drums.
The P6 MAXILUBE® offers the same features & benefits as the P3 POWERLUBE®, but has models available to suit grease containers from 50 kg (110lbs) to 55 kg (120lbs). The P6 MAXILUBE is also suitable for underground coal mine applications.
Features
quiet, non-corroding air motor
low air consumption
no air line lubricator required
fully serviceable
10 year warranty and parts guarantee
Specifications
grease viscosity:
up to NLGI No.2
wetted components:
zinc and hard chrome plated carbon steel, brass, and nitrile and polyurethane rubber
output:
approx. 460 g/min (16 oz/min)
max. air pressure:
1 030 kPa (150 psi, 10.3 bar)
min. air pressure:
400 kPa (60 psi, 4 bar)
min. compressor size:
0.08 m³/min (3 cfm)
air inlet/fluid outlet:
¼” NPT (F)
pump ratio:
50:1 (grease pressure is 50 times air pressure)
